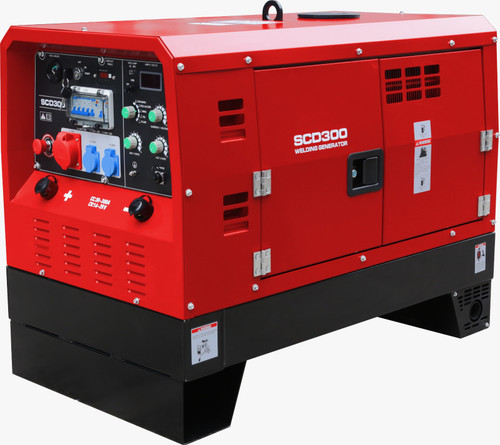

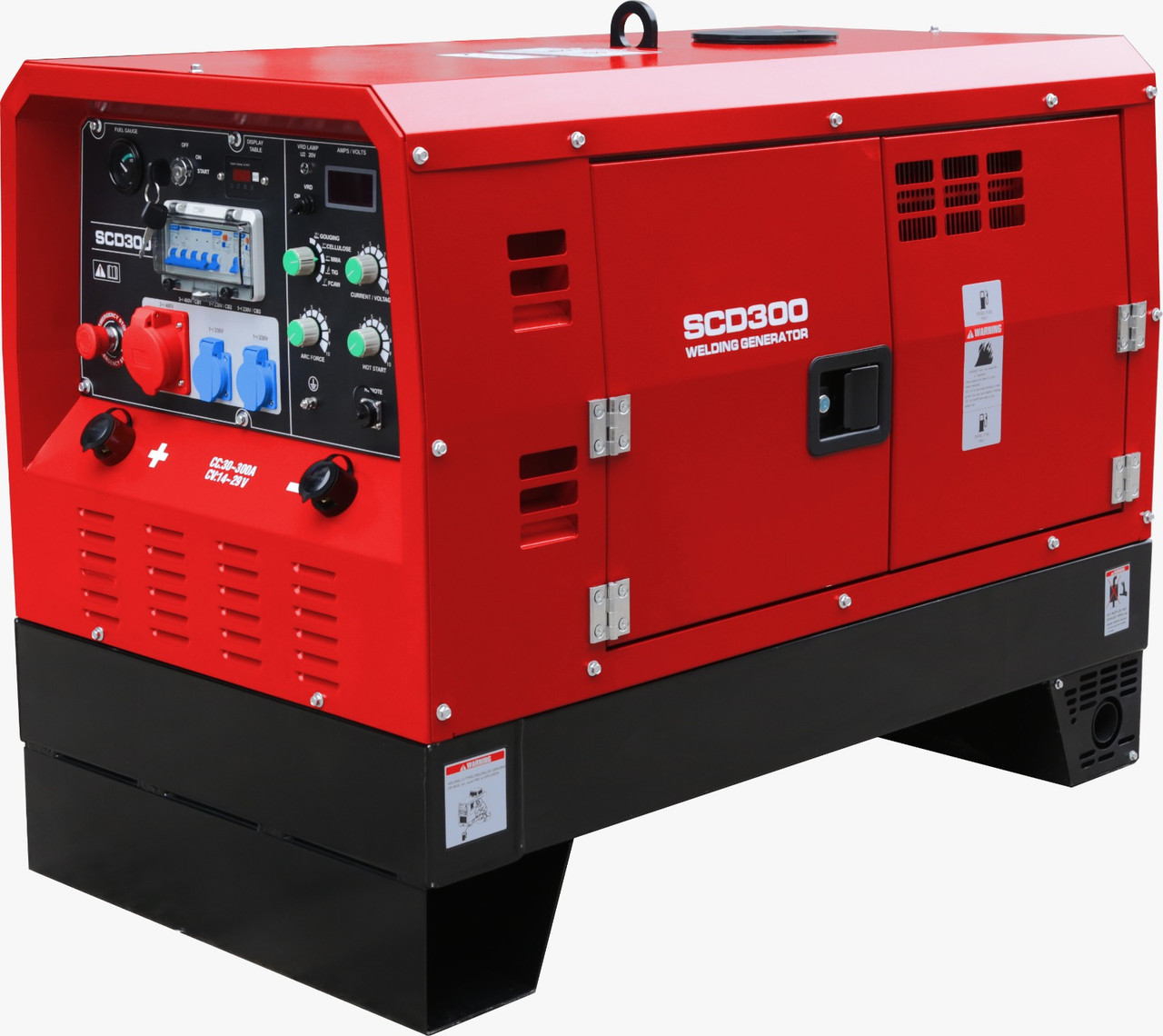

Senci Welder Generator SCD300
R228,850.00 (inc VAT) R199,000.00 (exc VAT)
Product Description
Product Specification
ARC Welding Specification Sheet
WELDING
| Specification | STICK | TIG | GOUGING | CELLULOSE | FCAW |
| No Load Voltage | 76V | 76V | 76V | 76V | 14V-30V |
| Current Range | 30-300A | 30-300A | 30-300A | 30-300A | 80-300A |
|
Welding Current 100% |
230A@29.2V |
230A@19.2V | 230A@29.2V | 230A@32V | 230A@26V |
| Welding Current 60% | 300A@32V | 300A@22V | 300A@32V | 300@32V | 300@29V |
| V-A Curve | Drooping | Drooping | Drooping | Drooping | Flat |
GENERATOR
| Specification | Value |
| Rated Output Power | 10kW (Max 11kW) |
| Excitation Type | AVR Brushless Excitation |
| Frequency | 50Hz/60Hz |
| Phase | Three Phase & Single Phase |
| AC Output | AC400V/10kW & C230V/7kW |
ENGINE
| Specification | Value |
| Model | KD 295 |
| Fuel | Diesel |
| Rated Output Power | 15Kw (Max 16kW) |
| Rated Speed | 3000r/min |
| Alarm Type | Oil Pressure |
| Cooling Method | Air-Cooled |
| Running Hours (H) | 12H |
COMPLETE MACHINE
| Specification | Value |
| Fuel Consumption | 3.6L/h |
| Fuel Tank Capacity | 45L |
| Protection Class | IP23 |
| Weight | 350kg |
| Product Dimensions | 135 x 82 x 100cm |
| Sound Level | 80dB@7m |
