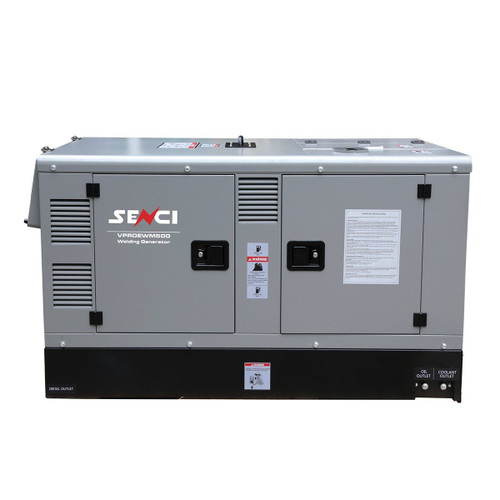

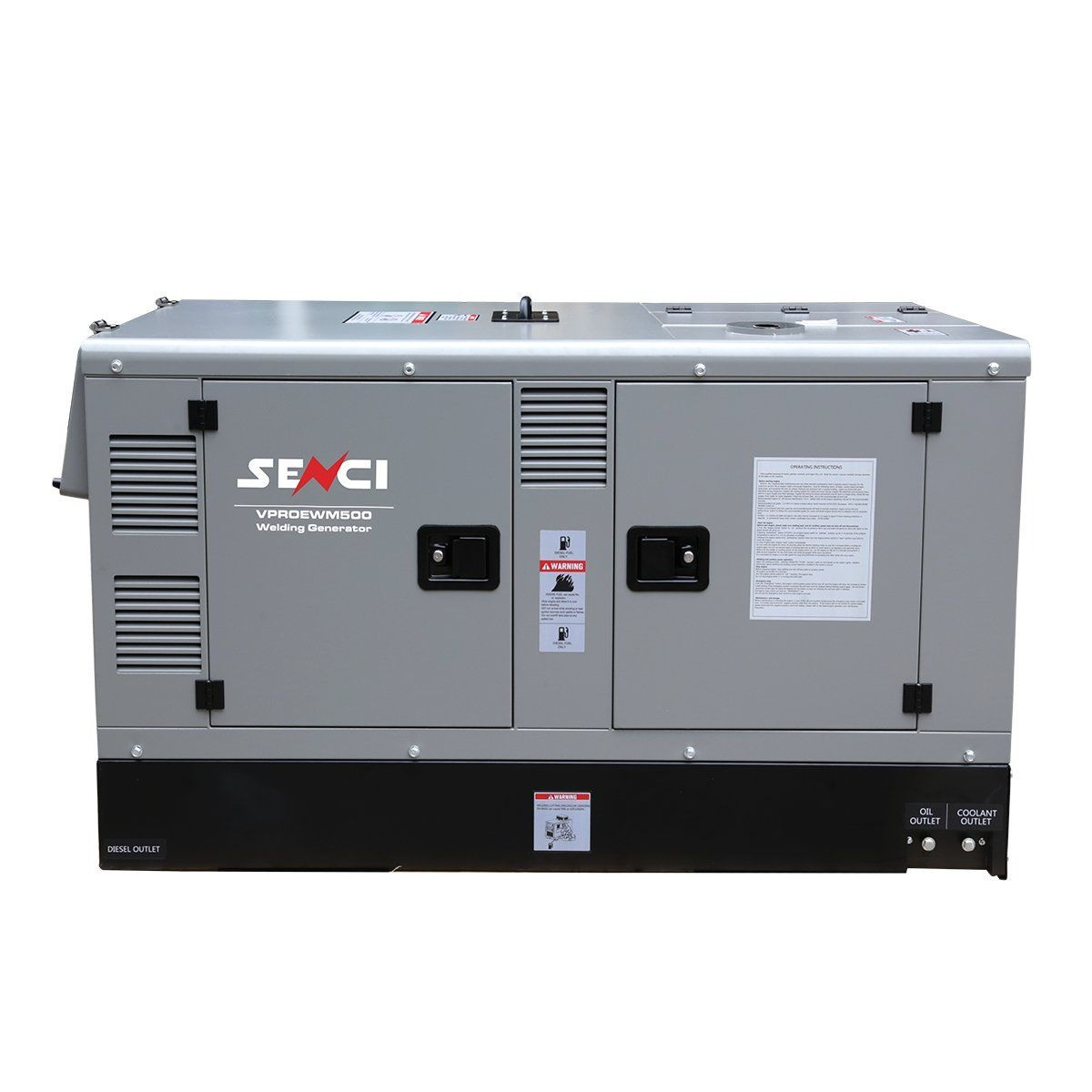

Senci SCD 400 Dual Welder Generator
R304,750.00 (inc VAT) R265,000.00 (exc VAT)
Product Description
Senci 400 Dual Welder Generator
Specification Sheet
WELDING
Dual Welding Handles (A & B): two independent welding outputs operating simultaneously.
| Specification | Stick | TIG | Gouging | Cellulose | FCAW |
| No-Load Voltage | 76V | 76V | 76V | 76V | 14V-35V |
| Current Range | 30A - 400A | 30A - 400A | 30A - 400A | 30A - 400A | 80A - 400A |
| 100% Duty Cycle Output | 310A @ 32.4V | 310A @ 22.4V | 310A @ 32.4V | 310A @ 32.4V | 310A @ 29.5V |
| 60% Duty CycleOutpu | 400A @ 36V | 400A @ 26V | 400A @ 36V | 400A @ 36V | 400A @ 34V |
| V-A Curve | Drooping | Drooping | Drooping | Drooping | Flat |
| Specification | Stick | TIG | Gouging | Cellulose | FCAW |
| No-load Voltage | 76V | 76V | 76V | 76V | 14V-35V |
| Current Range | 30A-400A | 30A - 400A | 30A-400A | 30A-400A | 80A-400A |
| 100% Duty Cycle Output | 310A @ 32.4V | 310A @ 22.4V | 310A @ 32.4V | 310A @ 32.4V | 310A - 29.5V |
| 60% Duty Cycle Output | 400A @ 36V | 400A @ 26V | 400A @ 36V | 400A @ 36V | 400A @ 34V |
| V-A Curve | Drooping | Drooping | Drooping | Drooping | Flat |
Duty Cycle: the percentage of a 10-minute period that the welder can operate continuously at the stated output before cooling is required
GENERATOR
| Specification | Value |
| Rated Output Power | 18Kw (Max 20kW) |
| Excitation Typ | AVR Brushless Excitation |
| Frequency | 50Hz / 60Hz |
| Phase | Three-Phase / Single-Phase |
| AC Output | AC400V/15kW / AC230V/6.9kW |
ENGINE
| Specification | Value |
| Model | WeiChai WP2.3D25E200 / WeiChai WP2.3D30E201 |
| Fuel | Diesel |
| Rated Output Power | 22kW / 27kW |
| Rated Speed | 1500 r/min / 1800 r/min |
| Alarm Type | Overspeed / High Water Temperature / Low Oil Pressure / Battery Level |
| Cooling Method | Water-Cooled |
COMPLETE MACHINE
| Specification | Value |
| Running Hours | 18H |
| Fuel Consumption | 4.2L/h |
| Fuel Tank Capacity | 80L |
| Protection Class | IP23 |
| Weight | 750kg |
| Product Dimensions | 1680 x 820 x 1000mm |
| Packaging Dimensions | 1820 x 940 x 1080mm |
| Sound Level | 72dB @ 7 |
Distributed by Arc Welders
sales@arcwelders.co.za | www.arcwelders.co.za
Specifications subject to change without notice
