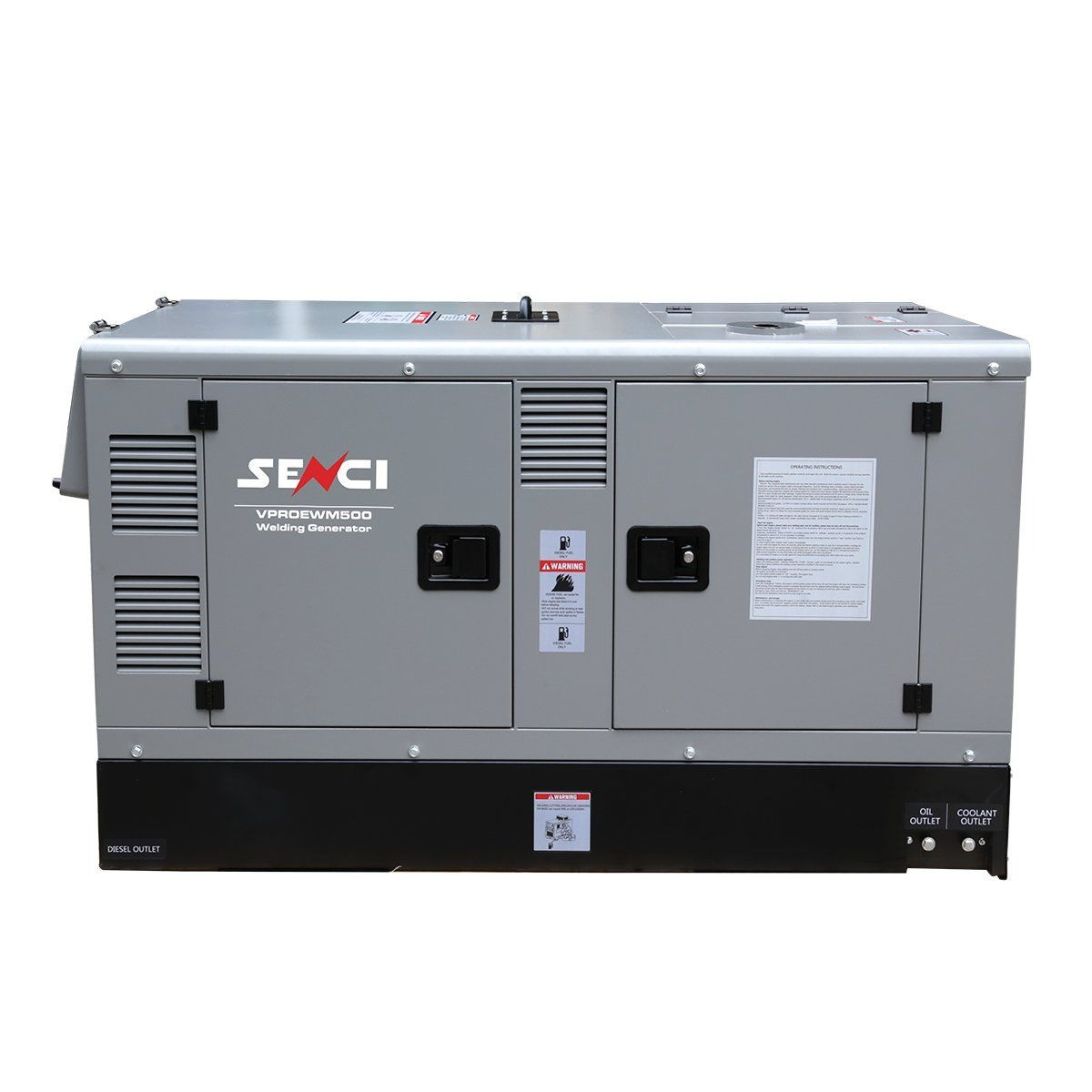

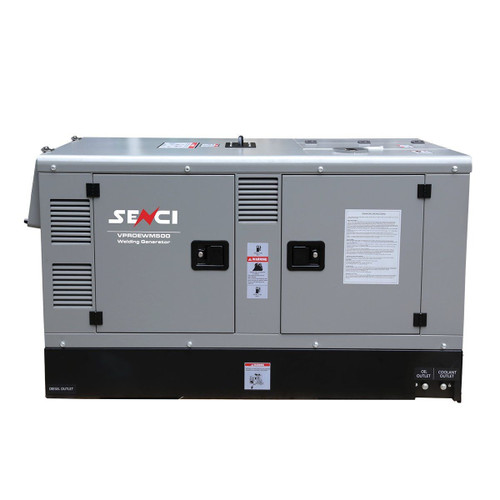

Senci Welder Generator SCD 500 Dual
Product Description

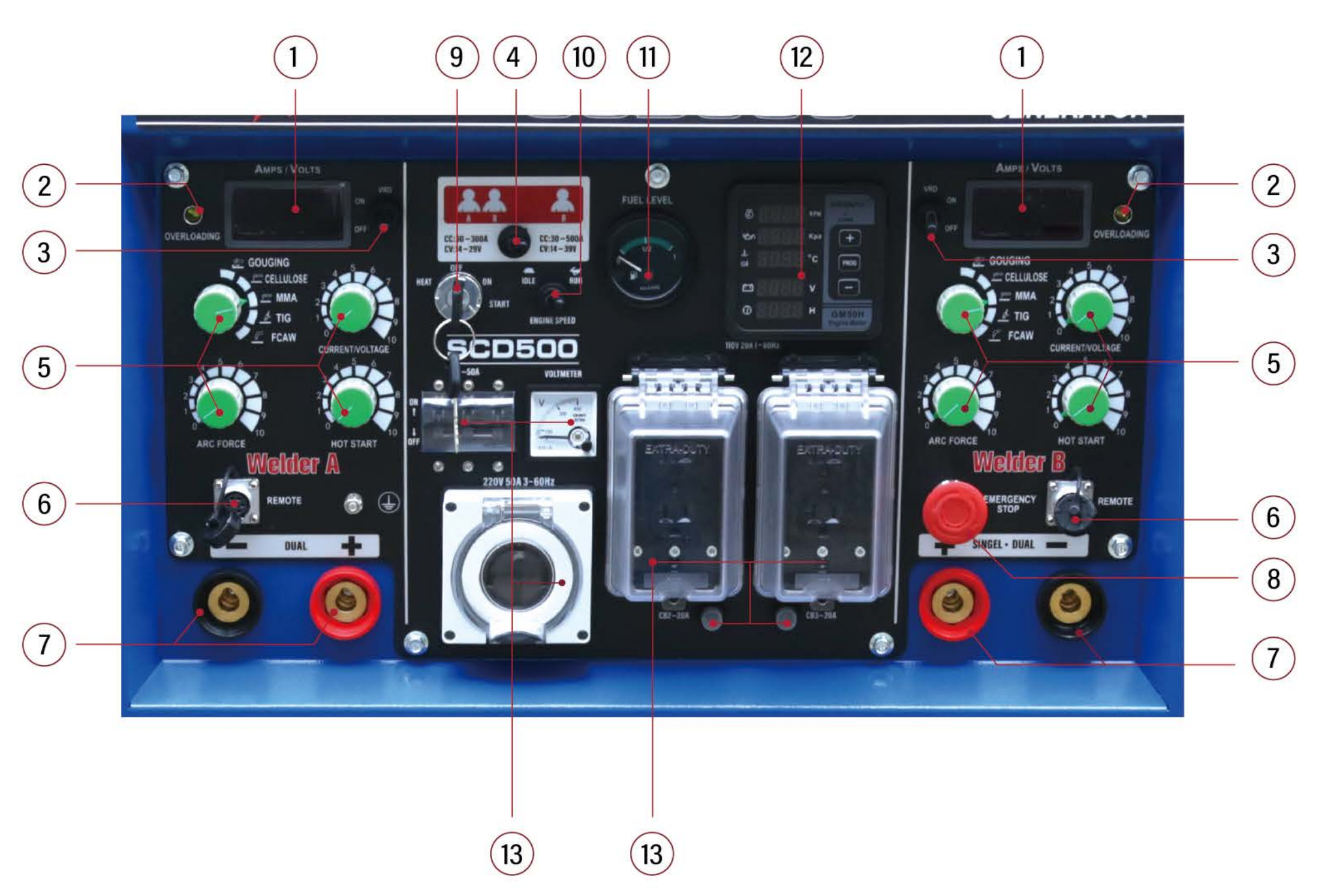

SCD500 – PANEL DISPLAY
1. Amps/Volts, dual independent digital display panel, with digital display for welding current, allowing precise presetting and real-time display, with current adjustable in increments of one amp.
2. Overload Indicator Light.
3. VRD Switch, reducing the open circuit voltage during the welding process to ensure the safety of the welder.
4. Single/Dual Welding Mode Switch.
5. Five Operating Modes, it is available to adjust the welding mode as needed.
6. Remote Control Socket, you can use a 7-pin remote manual control box to control the equipment's current, and it can also connect to a dedicated wire feeder.
7. Welding Machine Output Port.
8. Emergency Stop Button, in case of an emergency during welding, pressing this button will stop the equipment.
9. Engine Start/Stop, when in the "Run" position, the engine operates at low speed (1,500/1,800 rpm).
10. Engine Speed Control Switch, it is divided into idle speed (900 rpm) and rated speed (1,500/1,800 rpm).
11. Fuel Level Indicator.
12. Multi-functional Digital Display, including engine speed alarm, water temperature overheat alarm, oil pressure alarm, battery warning, and operating hours, providing a quick overview of the engine's performance.
13. International Socket Panel, it can be equipped with 110V/220V/380V sockets, with independent single-phase/three-phase circuit breakers.
SCD500 – PRODUCT SPECIFICATIONS
|
Section |
Specification |
Stick |
TIG |
Gouging |
Cellulose |
FCAW |
|
Dual Welding Handle (A&B) |
No-load voltage (VRD OFF) |
76 |
76 |
76 |
76 |
0 |
|
Dual Welding Handle (A&B) |
No-load voltage (VRD ON) |
17.5 |
17.5 |
17.5 |
17.5 |
N/A |
|
Dual Welding Handle (A&B) |
Current Range |
(30-300A)×2 |
(30-300A)×2 |
(30-300A)×2 |
(30-300A)×2 |
14-29V |
|
Dual Welding Handle (A&B) |
Welding Current (A) |
235 / 300 |
235 / 300 |
235 / 300 |
235 / 300 |
235 / 300 |
|
Dual Welding Handle (A&B) |
Welding Voltage (V) |
29.4 / 32 |
19.4 / 22 |
29.4 / 32 |
29.4 / 32 |
25.8 / 29 |
|
Dual Welding Handle (A&B) |
Duty Cycle (%) |
100 / 60 |
100 / 60 |
100 / 60 |
100 / 60 |
100 / 60 |
|
Dual Welding Handle (A&B) |
V-A Curve |
Drooping |
Drooping |
Drooping |
Drooping |
Flat |
|
Single Welding Handle (A&B) – Handle B |
No-load Voltage |
76 |
76 |
76 |
76 |
0 |
|
Single Welding Handle (A&B) – Handle B |
Current Range |
30-500A |
30-500A |
30-500A |
30-500A |
14-40V |
|
Single Welding Handle (A&B) – Handle B |
Welding Current (A) |
390 / 500 |
390 / 500 |
390 / 500 |
390 / 500 |
390 / 500 |
|
Single Welding Handle (A&B) – Handle B |
Welding Voltage (V) |
35.6 / 40 |
25.6 / 30 |
35.6 / 40 |
35.6 / 40 |
33.5 / 39 |
|
Single Welding Handle (A&B) – Handle B |
Duty Cycle (%) |
100 / 60 |
100 / 60 |
100 / 60 |
100 / 60 |
100 / 60 |
|
Single Welding Handle (A&B) – Handle B |
V-A Curve |
Drooping |
Drooping |
Drooping |
Drooping |
Flat |
Generator
|
Specification |
Value |
|
Rated Output Power |
22kW (Max.25kW) |
|
Excitation Type |
AVR Brushless Excitation |
|
Frequency |
50Hz |
|
Phase |
Three-Phase / Single-Phase |
|
AC Output |
Three-Phase: AC 220V/230V/380V/400V/440V; Single-Phase: AC 110V/120V/220V/230V/240V |
|
Engine Model |
Yuchai 4D24TG / Kubota V3300 / Weichai WP2.3D33 / Perkins 404D-22TG |
|
Fuel |
Diesel |
|
Engine Rated Output Power |
Yuchai: 28kW (Max. 30.8kW); Kubota: 28.4kW (Max. 31.2kW); Weichai: 30kW (Max. 32kW); Perkins: 32kW |
|
Rated Speed |
1500 r/min |
|
Alarm Type |
Overspeed / High Water Temperature / Low Oil Pressure / Battery Level |
|
Cooling Method |
Water-Cooled |
|
Running Hours (H) |
14 |
|
Fuel Consumption (L/h) |
5.2L |
|
Fuel Tank Capacity |
80L |
|
Protection Class |
IP23 |
|
Weight |
780kg |
|
Product Dimensions (L×W×H) |
1680×820×1000 |
|
Packaging Dimensions (mm) |
1820×940×1080 |
