REEFLEX 300amp MIG Welder Multi-Process MIG/TIG/ARC

R66,369.38 (inc VAT) R57,712.50 (exc VAT)

REEFLEX 300amp MIG Welder Multi-Process MIG/TIG/ARC

R66,369.38 (inc VAT) R57,712.50 (exc VAT)
55.00 KGS

Product Description

From only R1283.82 per month!

If you wish to purchase this machine please contact the sales team +27 11 468 1453 or email

The Reeflex 300 amp multi-process welder is manufactured in South Africa, comes with a two year warranty. It is the mines industry standard welding machine and boasts a 100% DUTY CYCLE at 300 amps! This machine can be used for both maintenance and production applications. Adjustable ARC FORCE for CC, and adjustable INDUCTANCE for CV enables each process to be fined tuned to obtain optimum results. Built with Siemens IGBT’s and European parts.

The REEFLEX multi machine comes with separate digital VOLT and AMP meters, which continuously indicate output voltage and output current, thereby enabling the operator to be in full control of all welding parameters.
The REEFLEX 300 amp gives the user ultimate flexibility, performance and portability. The output characteristics are changed between CC and CV by the flick of a switch, giving low spatter welding with MIG, (solid or flux cored wire). It has easy arc starting with LIFT TIG, and excellent welding on STICK welding.

Available in Dual Voltage 380 / 525V. DUAL VOLTAGE Price   60337.50 Excl VAT

  • 300 Amp Output @ 100% Duty Cycle.
  • 380V/550V 3 Phase input required.
  • Welding range 30-300amps.
  • High duty cycle - 100% @ 300 amps.
  • Industrial 4-roll geared wire feed mechanism.
  • Infinite control of welding voltage/amperage.
  • Arc Force - Soft/Harsh Weld - Controls Splatter.
  • Industrial robust metal chassis.
  • L.E.D Amperage & Voltage Display.
  • Cooling fan with thermostatic protection.
  • Takes 15KG rolls.
  • 5 metre Interconnecting Cable
  • Wire Size: MIG 0,8-1,2mm
  • Rod Wire Size: ARC 2,5 – 6,3mm
  • Tungsten: TIG 1,6 – 3,2mm
  • Built-In Voltage Reducer
  • Over/Under Voltage Protection
  • Over Temperature Protection
  • Fitted with 0.8/1.0 rollers as standard
  • Wire Feeder Features: Wire Speed, Burnback, 2T/4T, Gas Check, Ramp Up, Inch Control, Robust Wheels
  • Generator Friendly - Generator must be minimum of 15KVA and fitted with AVR (auto voltage regulation).
  • Clearly marked controls for quick adjustment of weld parameters

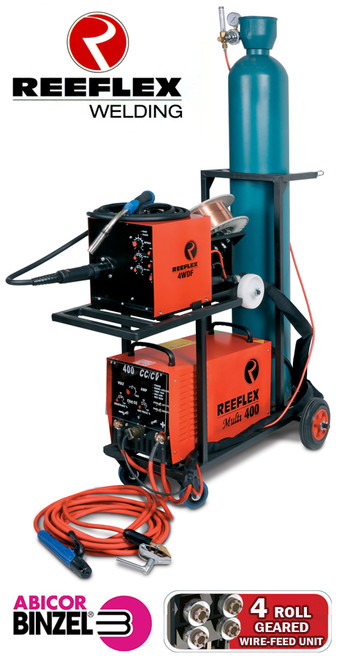

  • Package Includes: REEFLEX 300amp Multi-Process, Wire Feeder, Abicor Binzel 3M MB36 Air Cooled Mig Torch, ARC Kit, Welding Trolley,
    Earth Lead, Gas Hose, Mains Cable, Gas Regulator and Owner’s Manual.
  • Nett weight 35KG - Size 310x265x590mm
  • Wire Feeder 20KG - Size 340,550,360mm

Available in: 380volt or 500volt and dual voltage (380v/500v) options.

TIG torch are optional extras.
