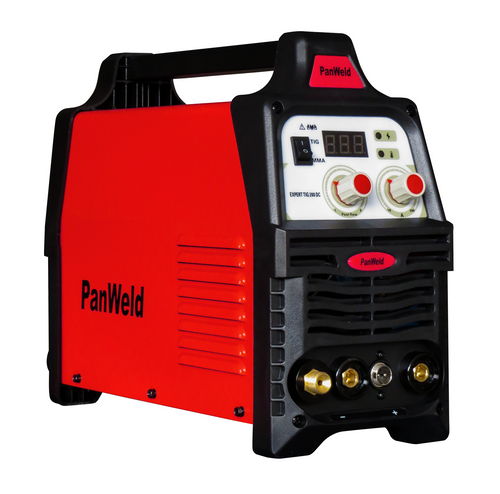

Panweld Expert TIG DC Pulse 200A Welder
Product Description
EARTH , TORCH WP26X4M , REGULATOR
1. Possessing TIG & MMA function.
2. 3 PCB circuit structure design
3. IGBT inverter technology
4. Reliable performance, low failure rate
5. Post gas adjustment6. Over current & heating protection.
|
TECHNICAL DATA |
UNIT |
EXPERT TIG 200 DC |
|
|
Power Voltage |
V |
AC220V±15% |
|
|
Frequency |
HZ |
50/60 |
|
|
Input power |
KVA |
7,2 |
|
|
Rated maximum input current |
A |
TIG 28AMMA 32.9A |
|
|
Output current adjustment |
A |
TIG10-200AMMA 30-160A |
|
|
Output voltage |
V |
TIG10.4-18VMMA 20.4-26.4V |
|
|
No load voltage |
V |
62 |
|
|
Duty cycle (40℃) |
% |
30 |
|
|
Power factor |
- |
0,73 |
|
|
Efficiency |
% |
80 |
|
|
AC frequency |
HZ |
- |
|
|
AC duty cycle |
% |
- |
|
|
Post flow time |
S |
1-6 |
|
|
Remote control |
- |
- |
|
|
Arcing Start mode |
- |
HF |
|
|
Electrode diameter |
MM |
TIG 1.2-2.4MMA 2.0-4.0 |
|
|
Suitable thickness |
MM |
0.3~3.5 |
|
|
Cooling method |
- |
FAN-COOLED |
|
|
Protection grade |
- |
F |
|
|
Enclosure protection class |
- |
IP21 |
|
|
Machine size: |
MM |
375*160*310 |
|
|
Machine net weight |
KGS |
7,1 |
|
|
PACKING SIZE: |
MM |
455*270*370 |
|
|
G.W: |
KGS |
7,9 |
|
