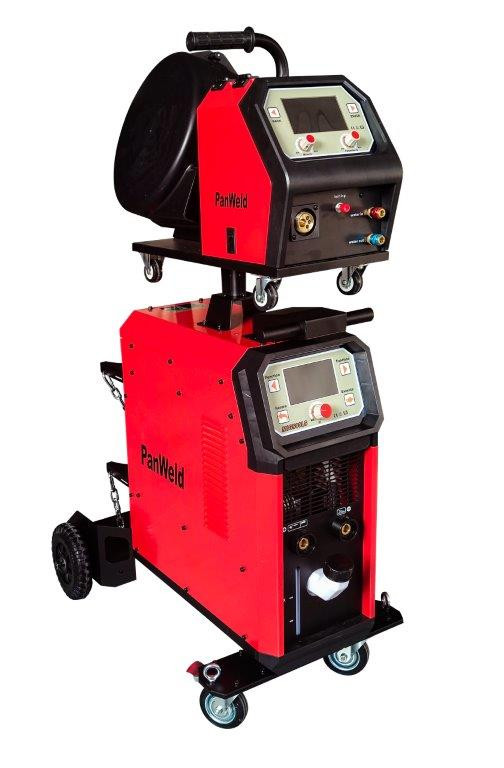

Panweld 500A Double Pulse MIG Welder
R67,322.00 (inc VAT) R58,540.87 (exc VAT)
Product Description
Product Description
Pulse Separated 4 Rolls feeder MIG Welding Machine IGBT Multi Process Water Cooling 15kg Wire Spool
Features
- Inbuilt Synergy mode and MIG setting mode. No matter what your welding skill, you can weld perfectly.
- 4 roll driven separated wire feeder 15kg roll
- IGBT technology
- Multi-process including MIG / LIFT TIG/MMA functions
- It is possible to weld many different kinds of material, mild steel, aluminium, copper, etc.
- DOUBLE PULSE Welding & spot welding
|
TECHNICAL PARAMETERS |
UNIT |
MIG 500 |
|
Rated input voltage |
V |
AC380V +/- 15% 50/60 |
|
Rated input power |
KVA |
13.9 |
|
Output current range |
A |
MIG:40 to 500 MMA: 30 – 500 TIG: 20-500 |
|
Duty Cycle |
% |
40 |
|
Wire Feeder |
|
External |
|
Wire Feeding Speed |
m/min |
2-18 |
|
Welding plate thickness |
Mm |
5-6 |
|
Feeding wire diameter |
|
0.8 – 1.2 |
|
Machine dimensions |
mm |
820 x 510 x 800 |
|
Nett Weight |
Kg |
44.2 |
