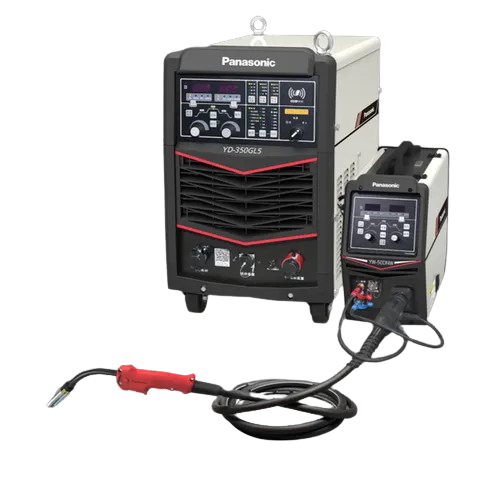

Panasonic GL5 350 Pulse Welder

R172,514.37 (inc VAT) R150,012.50 (exc VAT)

Panasonic GL5 350 Pulse Welder

R172,514.37 (inc VAT) R150,012.50 (exc VAT)
Weight:
50.00 KGS
Share

Product Description

High Grade Welding by GL Pulse control. Also available in non Pulse

Newly developed “GL Pulse Control” incorporates the advantages of three pulse control methods in Panasonic reputable original machine and fire-new full digital control.

By means of CPU’s high speed monitoring on output most optimized are marched with welding condition can be generated. While the wobble is compensated, the undercut is restrained. The spatter is reduced as a result.

 Practical Welding Management Function.

A many as nine sets of optimal parameters can be stored and recalled instantly.

The pre-set parameters are lockable as read only data.

Equipped with Wire Feeding Motor Attached with High Accurate Encoder.

The motor attached with encoder ensures accurate feeding of welding wire, realizing uniformed welding bead.

The stable treatment is obtainable even when such external factors as power supply voltage and wire feeding resistance change.

Thanks to stable wire feeding, the same welding condition is repeatable at various surroundings.

2-drive, 2-slave feeding adopts 2-point feeding with strong feeding force. The stable feeding is realized at the conditions, such as stainless steel welding wire, flux cored welding wire and the torch with extension cable.

Network Access Enables Remote Monitoring and Management

By connecting the extension interface on the welding machine to an extra LAN adaptor (Optional)



Model   YD350GL YD500GL
Power control method   IGBT Inverter   IGBT Inverter
Rated frequency Hz 50/60Hz  50/60Hz
Rated input   14.5/14  23.3/22.4
 Output characteristic CV   CV
Rated output current 350 (DC)   500 (DC)
Rated output voltage 31.5 (DC)   39 (DC)
Rated duty cycle %  60  100
Rated output no bad voltage 73(DC)   67 (DC)
Output current adjustable range 30-430  60-550
Output voltage adjustable range 16-35.5   17-41.5
Method of welding   Individual   Individual
Enclosure protection class   IP215   IP215
Insulation class    F
Cooling mode   Air Cooled   Air Cooled
Applicable welding wire type   Solid/F CW   Solid/F CW
Applicable wire diameter mm

 0.8/0.9/1.0/1.2

 1.2/1.4/1.6
Applicable wire material    MS, S/S, Flux Cored  MS, S/S, Flux Cored
Welding method    CO2/MIG/Pulse  CO2/MIG/Pulse
Shielding gas   CO2, MAG, MIG, Pulse MIG  CO2, MAG, MIG, Pulse MIG
Pulse characteristic    Digital Control - 15 (Min) 0 (MAX) 15 (Standard)  Digital Control - 15 (Min) 0 (MAX) 15 (Standard)
Wave form control unit    Digital control 7 (Min), 0 (Standard)  7 (Max)  Digital control 7 (Min), 0 (Standard)  7 (Max
Memory    9 ch reproducible storage   9 ch reproducible storage
Sequence    Welding, welding crater,    Welding, welding crater,
Gas check time S  60 Max Gas purge time  60 Max Gas purge time
Pre-flow time S  0-5.0 continuous increment of 0.1   0-5.0 continuous increment of 0.1
Post flow time  0-5.0 continuous increment of 0.1   0-5.0 continuous increment of 0.1
Spot welding time  0.3-10.0 continuous of 0.1  0.3-10.0 continuous of 0.1
Dimension (WxDxH) mm  380x550x545  380x550x815
Mass Kg  50  60
