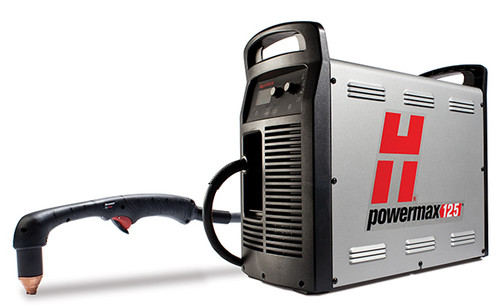

Hypertherm Powermax125 Sync
Product Description
With the maximum power and performance for air plasma in our line, the Powermax125 severs 57 mm (2-1/4") thick metals at 125 mm/min (5 ipm). With 100% duty cycle and Powermax reliability, it is ready for the most demanding cutting and gouging jobs.
New Duramax Hyamp torch styles provide versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging. Smart Sense™ technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or the workpiece.
Operating data
|
Capacity |
Thickness |
Cut speed |
|
|
Cutting |
|
|
Recommended |
38 mm (1-1/2") |
457 mm/min (18 ipm) |
|
|
44 mm (1-3/4") |
250 mm/min (10 ipm) |
|
Severance (hand cutting) |
57 mm (2-1/4") |
125 mm/min (5 ipm) |
|
Pierce* |
25 mm (1") |
|
|
* Pierce rating for handheld use or with automatic torch height control |
||
|
Capacity |
Metal removal rate |
Groove profile* |
|
|
Gouging |
|
|
Typical gouge |
12,52 kg/hr |
4,3 mm-7,9 mm D x 6,1 mm-9,9 mm W |
|
* Actual groove profile varies with torch angle, arc stretch, and technique |
||
Maximum productivity
• Finish jobs faster with cut speeds 5 times greater than oxyfuel on 12 mm mild steel.
• Spend less time on grinding and edge preparation due to superior cut and gouge quality.
• Maximize your cutting time with 100% duty cycle.
Low operating costs
• Reduce costs with consumable life up to four times longer than other systems in this amperage range.
• Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused.
Easy-to-use for cutting and gouging
• No need to change the air pressure. Smart Sense™ technology ensures that it is always correctly set.
• Tackle different jobs with multiple, easy-to-use torch styles.
Built and tested to withstand the harshest conditions
• Duramax™ Hyamp torches are designed for high-impact and heat resistance.
• SpringStart™ technology ensures consistent starting and a more reliable torch.
• Low maintenance for maximum uptime.
Specifications
|
Input voltages |
CSA |
480/600 V, 3-PH, 50/60 Hz |
|
CE |
400 V, 3-PH, 50/60 Hz |
|
|
CCC |
380 V, 3-PH, 50/60 Hz |
|
|
Input current @ 21.9 kW |
300/400/480/600 V, 38/36/31/24 A |
|
|
Output current |
30 - 125 A |
|
|
Rated output voltage |
175 VDC |
|
|
Duty cycle @ 40°C (104°F) |
100% @ 125 A |
|
|
Open circuit voltage (OCV) |
|
|
|
Dimensions with handles |
592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H) |
|
|
Weight with 7.6 m (25') torch |
480 V 47,9 kg (105.7 lbs) |
|
|
Gas Supply |
Clean, dry, oil-free air or nitrogen |
|
|
Recommended gas inlet |
Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi) |
|
|
Input power cable length |
3 m (10')* |
|
|
Power supply type |
Inverter - IGBT |
|
|
Engine drive requirement |
40 kW for full 125 A output |
|
|
Certifications |
CSA-certified for use in the Americas and Asia, except China. |
|
|
Warranty |
Power supplies have a 3-year warranty and torches a 1-year warranty. |
|
*No power cord on CCC models.
Engine-driven generator operation
|
Engine drive rating |
System output current |
Performance (arc stretch) |
|
40 kW |
125 A |
Full |
|
30 kW |
125 A |
Limited |
|
30 kW |
100 A |
Full |
|
25 kW |
100 A |
Limited |
|
22.5 kW |
75 A |
Full |
|
20 kW |
75 A |
Limited |
|
20 kW |
60 A |
Full |
|
15 kW |
60 A |
Limited |
|
12 kW |
40 A |
Full |
|
10 kW |
40 A |
Limited |
|
10 kW |
30 A |
Full |
|
8 kW |
30 A |
Limited |
Production cut chart
|
Material |
Thickness |
Current |
Production cut speed* |
||
|
inches |
mm |
amps |
ipm |
mm/min |
|
|
Mild steel |
1/4 |
6 |
125 |
225 |
5960 |
|
1/2 |
12 |
125 |
93 |
2510 |
|
|
3/4 |
20 |
125 |
48 |
1140 |
|
|
1 |
25 |
125 |
30 |
780 |
|
|
Stainless steel |
1/4 |
6 |
125 |
288 |
7690 |
|
3/8 |
8 |
125 |
154 |
5550 |
|
|
1/2 |
12 |
125 |
98 |
2710 |
|
|
3/4 |
20 |
125 |
43 |
1030 |
|
|
Aluminum |
1/4 |
6 |
125 |
320 |
8560 |
|
1/2 |
12 |
125 |
114 |
3070 |
|
|
3/4 |
20 |
125 |
62 |
1500 |
|
|
1 |
25 |
125 |
40 |
1050 |
|
*Production cut speeds are the result of Hypertherm's laboratory testing.
Production speeds are approximately 80% of maximum.
For optimum cut quality, cutting speeds may vary based on different cutting applications.
