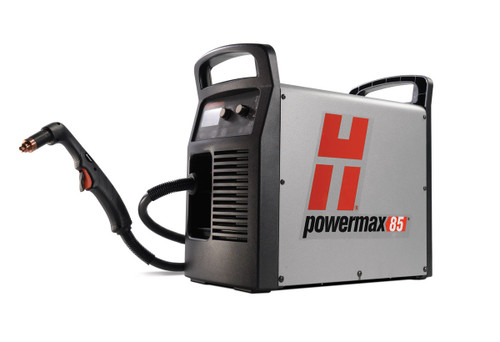

Hypertherm Powermax 85 Sync
Product Description
The Powermax85 combines the latest technological innovations and seven Duramax™ series torch options with 85 amps of cutting power to make it the premier 1" air plasma system for handheld or mechanized cutting and gouging.
Operating data
|
Capacity |
Thickness |
Cut speed |
|
|
Cutting |
|
|
Recommended |
25 mm (1") |
500 mm/min (20 ipm) |
|
|
32 mm (1-1/4") |
250 mm/min (10 ipm) |
|
Severance (hand cutting) |
38 mm (1-1/2") |
125 mm/min (5 ipm) |
|
Pierce* |
20 mm (3/4") |
|
|
* Pierce rating for handheld use or with automatic torch height control |
||
|
Capacity |
Metal removal rate |
Groove profile |
|
|
Gouging |
|
|
Typical gouge |
8,8 kg/hr |
5,8 mm D x 7,1 mm W |
Maximum productivity
• Finish jobs faster with cut speeds two and a half times greater than oxyfuel on 1/2" mild steel.
• Spend less time on grinding and edge preparation due to superior cut and gouge quality.
Easy-to-use for cutting and gouging
• No need to change the air pressure. Smart Sense™ technology ensures that it is always correctly set.
• Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting.
• Tackle different jobs with multiple, easy-to-use torch styles.
Low operating costs
• Reduce costs with long consumable life and more uptime.
• High power efficiency lowers energy consumption.
Built and tested to withstand the harshest conditions
• Duramax™ torches are designed for high-impact and heat resistance.
• SpringStart™ technology ensures consistent starting and a more reliable torch.
• Low maintenance for maximum uptime.
Specifications
|
Input voltages |
CSA |
200 – 480 V, 1-PH, 50/60 Hz |
|
CE |
400 V, 3-PH, 50/60 Hz |
|
|
Input Current @12.2 kW |
CSA |
200/208/240/480 V, 1-PH, 70/68/58/29 A |
|
CE |
380/400 V, 3-PH, 20.5/19.5 A |
|
|
Output current |
25 - 85 A |
|
|
Rated output voltage |
143 VDC |
|
|
Duty cycle @ 40°C (104°F) |
CSA |
60% @ 85 A, 230 – 600 V, 3-PH |
|
CE |
60% @ 85 A, 380/400 V, 3-PH |
|
|
Open circuit voltage (OCV) |
CSA |
305 VDC |
|
CE |
270 VDC |
|
|
Dimensions with handles |
500 mm (19.7") D; 234 mm (9.2") W; 455 mm (17.9") H |
|
|
Weight with 7.6 m ( 25') torch |
CSA |
32 kg (71 lbs) |
|
CE |
28 kg (62 lbs) |
|
|
Gas Supply |
Clean, dry, oil-free air or nitrogen |
|
|
Recommended gas inlet |
Cutting: 189 l/min (400 scfh, 6.7 scfm) @ 5.6 bar (85 psi) |
|
|
Input power cable length |
3 m (10') |
|
|
Power supply type |
Inverter - IGBT |
|
Engine-driven generator operation
|
Engine drive rating |
System output current |
Performance (arc stretch) |
|
20 kW |
85 A |
Full |
|
15 kW |
70 A |
Limited |
|
15 kW |
60 A |
Full |
|
12 kW |
60 A |
Limited |
|
12 kW |
40 A |
Full |
|
8 kW |
40 A |
Limited |
|
8 kW |
30 A |
Full |
Production cut chart
|
Material |
Thickness |
Current |
Production cut speed* |
||
|
inches |
mm |
amps |
ipm |
mm/min |
|
|
Mild steel |
1/4 |
6 |
85 |
160 |
4400 |
|
1/2 |
12 |
85 |
56 |
1600 |
|
|
3/4 |
20 |
85 |
29 |
680 |
|
|
Stainless steel |
1/4 |
6 |
85 |
164 |
4600 |
|
1/2 |
12 |
85 |
48 |
1400 |
|
|
3/4 |
20 |
85 |
24 |
570 |
|
|
Aluminum |
1/4 |
6 |
85 |
172 |
4900 |
|
1/2 |
12 |
85 |
68 |
1930 |
|
|
3/4 |
20 |
85 |
37 |
880 |
|
*Production cut speeds are the result of Hypertherm's laboratory testing.
Production speeds are approximately 80% of maximum.
For optimum cut quality, cutting speeds may vary based on different cutting applications.
Refer to the operator manual for more details.
