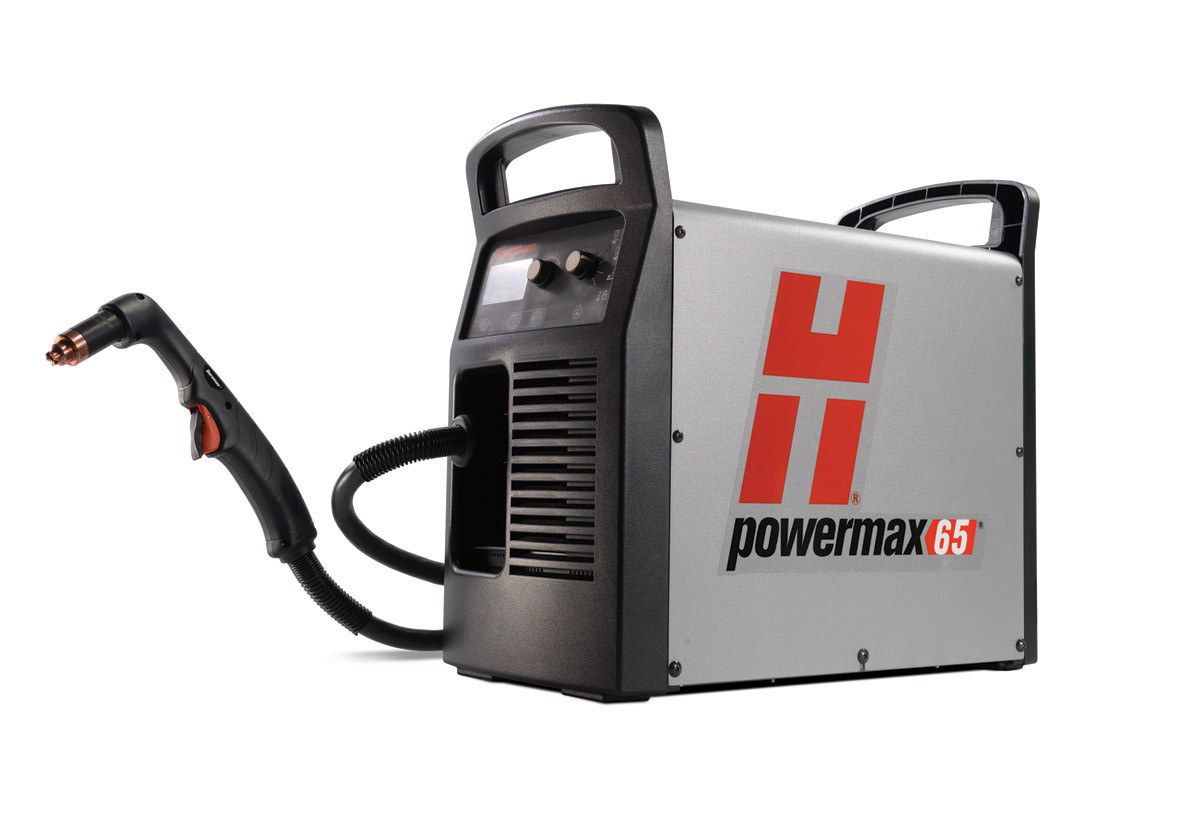

Hypertherm Powermax 65 Sync
Product Description
Offering the latest technological innovations, like Smart Sense™ technology to automatically adjust the gas pressure, the Powermax65 helps you do more than ever before. Seven Duramax™ torch styles provide greater versatility and enable operators to select the right tool for the job.
Operating data
|
Capacity |
Thickness |
Cut speed |
|
|
Cutting |
|
|
Recommended |
20 mm (3/4") |
500 mm/min (20 ipm) |
|
|
25 mm (1") |
250 mm/min (10 ipm) |
|
Severance (hand cutting) |
32 mm (1-1/4") |
125 mm/min (5 ipm) |
|
Pierce* |
16 mm (5/8") |
|
|
* Pierce rating for handheld use or with automatic torch height control |
||
|
Capacity |
Metal removal rate |
Groove profile |
|
|
Gouging |
|
|
Typical gouge |
4,8 kg/hr |
3,5 mm D x 6,6 mm W |
Maximum productivity
• Finish jobs faster with cut speeds one and a half times greater than oxyfuel on 12 mm mild steel.
• Spend less time on grinding and edge preparation due to superior cut and gouge quality.
Easy-to-use for cutting and gouging
• No need to change the air pressure. Smart Sense™ technology ensures that it is always correctly set.
• Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting.
• Tackle different jobs with multiple, easy-to-use torch styles.
Low operating costs
• Reduce costs with long consumable life and more uptime.
• High power efficiency lowers energy consumption.
Built and tested to withstand the harshest conditions
• Duramax™ torches are designed for high-impact and heat resistance.
• SpringStart™ technology ensures consistent starting and a more reliable torch.
• Low maintenance for maximum uptime.
Specifications
|
Input voltages |
CSA |
200 – 480 V, 1-PH, 50/60 Hz |
|
CE |
400 V, 3-PH, 50/60 Hz |
|
|
Input Current @ 9 kW |
CSA |
200/208/240/480 V, 1-PH, 52/50/44/22 A |
|
CE |
380/400 V, 3-PH, 15.5/15 A |
|
|
Output current |
20 - 65 A |
|
|
Rated output voltage |
139 VDC |
|
|
Duty cycle @ 40°C (104°F) |
CSA |
50% @ 65 A, 230 – 600 V, 1/3-PH |
|
CE |
50% @ 65 A, 380/400 V, 3-PH |
|
|
Open circuit voltage (OCV) |
CSA |
295 VDC |
|
CE |
270 VDC |
|
|
Dimensions with handles |
500 mm (19.7") D; 234 mm (9.2") W; |
|
|
Weight with 7.6 m (25') torch |
CSA |
29 kg (64 lbs) |
|
CE |
26 kg (57 lbs) |
|
|
Gas Supply |
Clean, dry, oil-free air or nitrogen |
|
|
Recommended gas inlet |
Cutting: 189 l/min (400 scfh; 6.7 scfm) @ 85 psi (5.6 bar) |
|
|
Input power cable length |
3 m (10') |
|
|
Power supply type |
Inverter - IGBT |
|
Engine-driven generator operation
|
Engine drive rating |
System output current |
Performance (arc stretch) |
|
15 kW |
65 A |
Full |
|
12 kW |
65 A |
Limited |
|
12 kW |
40 A |
Full |
|
8 kW |
40 A |
Limited |
|
8 kW |
30 A |
Full |
Production cut chart
|
Material |
Thickness |
Current |
Production cut speed* |
||
|
inches |
mm |
amps |
ipm |
mm/min |
|
|
Mild steel |
10 GA |
3 |
65 |
224 |
6100 |
|
1/4 |
6 |
65 |
116 |
3240 |
|
|
3/8 |
10 |
65 |
62 |
1500 |
|
|
1/2 |
12 |
65 |
40 |
1140 |
|
|
5/8 |
16 |
65 |
26 |
650 |
|
|
Stainless steel |
10GA |
3 |
65 |
296 |
8260 |
|
1/4 |
6 |
65 |
96 |
2850 |
|
|
3/8 |
10 |
65 |
52 |
1250 |
|
|
1/2 |
12 |
65 |
32 |
920 |
|
|
Aluminum |
1/8 |
3 |
65 |
336 |
8800 |
|
1/4 |
6 |
65 |
152 |
4400 |
|
|
3/8 |
10 |
65 |
68 |
1650 |
|
|
1/2 |
12 |
65 |
48 |
1330 |
|
