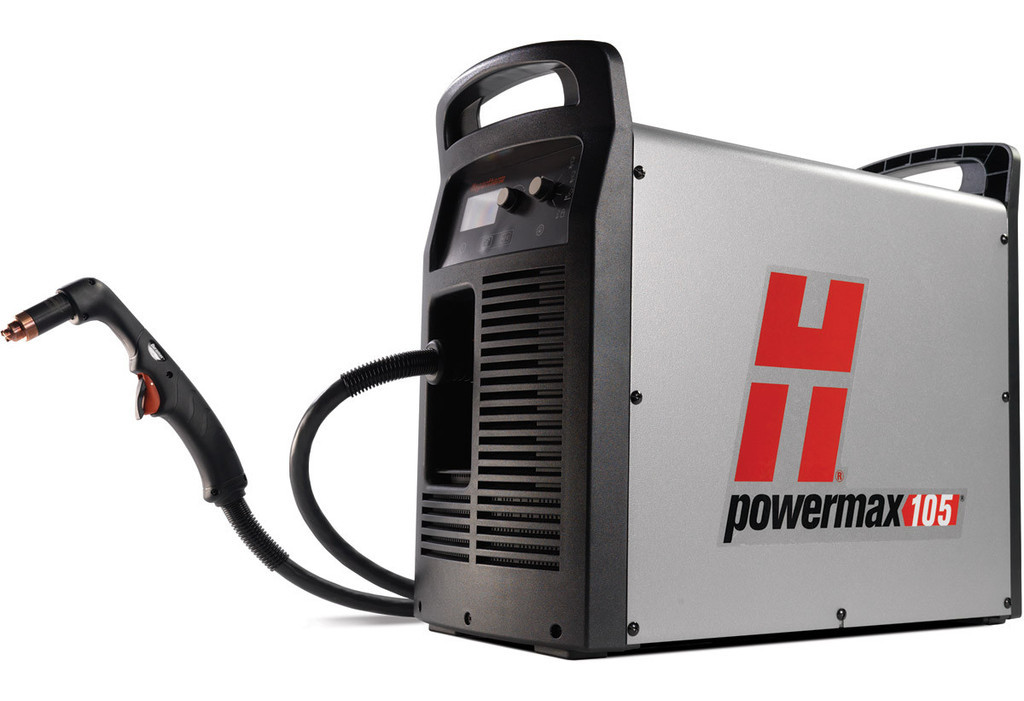

Hypertherm Powermax 105 Sync

Hypertherm Powermax 105 Sync

Weight:
45.00 KGS
Share

Product Description

The Powermax105 delivers superior cut capabilities on 1-1/4" (32 mm) thick metals. It has the duty cycle and industrial performance necessary for tough cutting and gouging jobs.

Seven Duramax torch styles provide versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging.

Smart Sense™ technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece.

Operating data

 Capacity

Thickness

Cut speed



Cutting

Recommended

32 mm (1-1/4")

500 mm/min (20 ipm)



38 mm (1-1/2")

250 mm/min (10 ipm)

Severance (hand cutting)

50 mm (2")

125 mm/min (5 ipm)

Pierce*

22 mm (7/8")



* Pierce rating for handheld use or with automatic torch height control

 Capacity

Metal removal rate

Groove profile



Gouging

Typical gouge

9,8 kg/hr
(21.7 lbs/hr)

6,4 mm D x 7,4 mm W
(0.25" D x 0.29" W)



Maximum productivity

• Finish jobs faster with cut speeds three times greater than oxyfuel on 12 mm mild steel.

• Spend less time on grinding and edge preparation due to superior cut and gouge quality.

Low operating costs

• Reduce costs with long consumable life and more uptime.

• Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused.

Easy-to-use for cutting and gouging

• No need to change the air pressure. Smart Sense™ technology ensures that it is always correctly set.

• Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting.

• Tackle different jobs with multiple, easy-to-use torch styles.

Built and tested to withstand the harshest conditions

• Duramax™ torches are designed for high-impact and heat resistance.

• SpringStart™ technology ensures consistent starting and a more reliable torch.

• Low maintenance for maximum uptime.



Specifications

Input voltages

CSA

200-600 V, 3-PH, 50/60 Hz

CE

400 V, 3-PH, 50/60 Hz
200-400 V, 3-PH, 50/60 Hz

CCC

380 V, 3-PH, 50/60 Hz

Input current @ 21.9 kW

200/208/240/380/400/480/600 V, 58/56/49/28/25/22 A

Output current

30 - 105 A

Rated output voltage

160 VDC

Duty cycle @ 40°C (104°F)

80% @ 105 A

Open circuit voltage (OCV)

  • 200-600 CSA
  • 380 V CCC
  • 230-400 V CE
  • 400 V CE
  • 300 VDC
  • 288 VDC
  • 288 VDC
  • 292 VDC

Dimensions with handles

592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)

Weight with 7.6 m (25') torch

  • 200-600 V CSA
  • 380 V CCC/400 V CE
  • 230-400 V CE
  • 45 kg (100 lbs)
  • 41 kg (90.4 lbs)
  • 45 kg (100 lbs)

Gas Supply

Clean, dry, oil-free air or nitrogen

Recommended gas inlet
flow rate / pressure

Cutting: 217 l/min (460 scfh) @5.9 bar (85 psi)
Gouging: 227 l/min (480 scfh) @4.8 bar (70 psi)

Input power cable length

3 m (10')*

Power supply type

Inverter - IGBT

Engine drive requirement

30 kW for full 105 A output

Certifications

CSA-certified for use in the Americas and Asia, except China.
CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China.

Warranty

Power supplies have a 3-year warranty and torches a 1-year warranty.

*No power cord on some CCC models.

Engine-driven generator operation

Engine drive rating

System output current

Performance (arc stretch)

30 kW

105 A

Full

22.5 kW

105 A

Limited

22.5 kW

85 A

Full

15 kW

85 A

Limited

15 kW

65 A

Limited

Production cut chart

Material

Thickness

Current

Production cut speed*

inches

mm

amps

ipm

mm/min

Mild steel

1/4

6

105

192

5090

3/8

8

105

116

3870

1/2

12

105

76

2060

3/4

20

105

40

940

Stainless steel

1/4

6

105

224

6000

3/8

8

105

112

4210

1/2

12

105

68

1860

3/4

20

105

34

810

Aluminum

1/4

6

105

265

7090

1/2

12

105

91

2450

3/4

20

105

50

1190

*Production cut speeds are the result of Hypertherm's laboratory testing.
Production speeds are approximately 80% of maximum.
For optimum cut quality, cutting speeds may vary based on different cutting applications.
