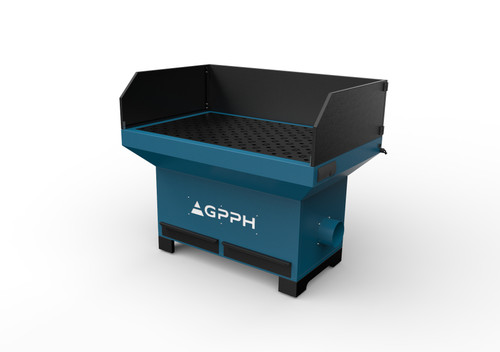

Grinding Welding Station Base with Guards

THE PRICE DOES NOT INCLUDE SHIPPING

The grinding-welding station S.O.001 is intended for capturing and removing the dust and gases formed during grinding with a
hand grinder or welding and metalworking operations. The station may be used with an exhaust fan or fan-powered filter equipment.

Working surface guard Tilting doors - components of length exceeding the width of the table(1400 mm) can be placed on the working table
Connector Ø160mm installed in the side surface of the exhaust trough The air may be exhausted from the bottom through the table of
exhaust trough.

Worktop made of 8mm sheet of the dimensions 1270 x 770- assembly holes in the grid 100 x 100 of system 28 and additional holes for
the exhaust for dust and gases.

Weight: 190 kg.

Recommended air flow: 3200 m3/h

Resistance of flow: 250 Pa

THE S.O.001 STATION CONTAINS THE FOLLOWING COMPONENTS:

Rear guard

Tilting doors on the right and left side.

Working table with a work top made of 8 mm sheet.

Exhaust trough with drawers.

Two 230V plug sockets for connection of electrical power hand tools

System for connection of work space lighting.

Connector for exhaust hose.
