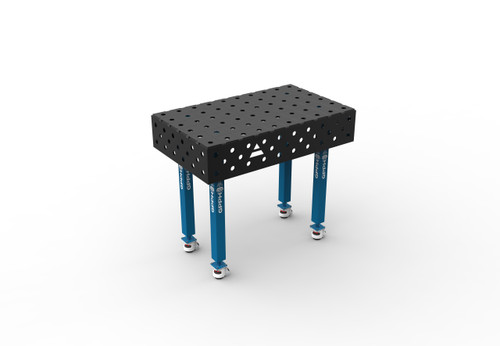

GPPH WELDING TABLE 1000 X 600 8mm

TECHNICAL PARAMETERS

• Stable and massive construction
• The highest quality of workmanship
• Perfect flatness of the table [+/- 0,5mm]
• Made of S355J2+N *
• Thickness 8mm
• Holes of system ø16 or ø28 in the grid 100x100
• Three grids of holes on the 4 sides
• Holes for easy tool mounting
• Engraved scale in the grid 100x100mm
• Table legs made of profile 60x60mm
• Height adjustment of the table with standard legs approx. 880-930mm
• Possibility of using stainless steel covers
• Tables can be combined freely to extend a working surface
• All tables are reinforced with ribs
• Produced with standard ISO 2768–1
• There is an option to purchase, for an additional charge, ECO welding table
  in UP version - with milled and chamfered holes

*S355J2+N is welder-friendly, low carbon, high tensile strength structural steel,
can be readily welded to other weldable steel. For its low carbon equivalent,
it possesses good cold-forming properties. The plate is produced by fully
kilned steel process and supplied in a normalized or controlled rolling condition.

*We use a carefully selected steel. Depending on the batch, it may
appear in shades of blue and dark gray. It is natural to have different
shades on one sheet - this is due to the technological process in the
steelworks and does not affect its quality or structure. We do not pickle
the metal sheet to obtain even color because this process makes the
table top bright. The flash can bounce off the table during welding,
making it difficult to work. We do not cover our tables with paints,
because it makes the surface of the tables difficult to conduct.
Our tables are coated with an oil-based preparation that protects
them during transport and first use. We recommend using
anti-spattering agents. Welding tables that are on the market are
mostly made of constructional steel S355J2+N, which is not
hardened or nitrided.

According to the opinion of many specialists with whom we have
the opportunity to discuss this topic, nitriding has a negligible effect
on the properties of steel S355J2+N. Therefore, we offer a specific
product at a reasonable price.
