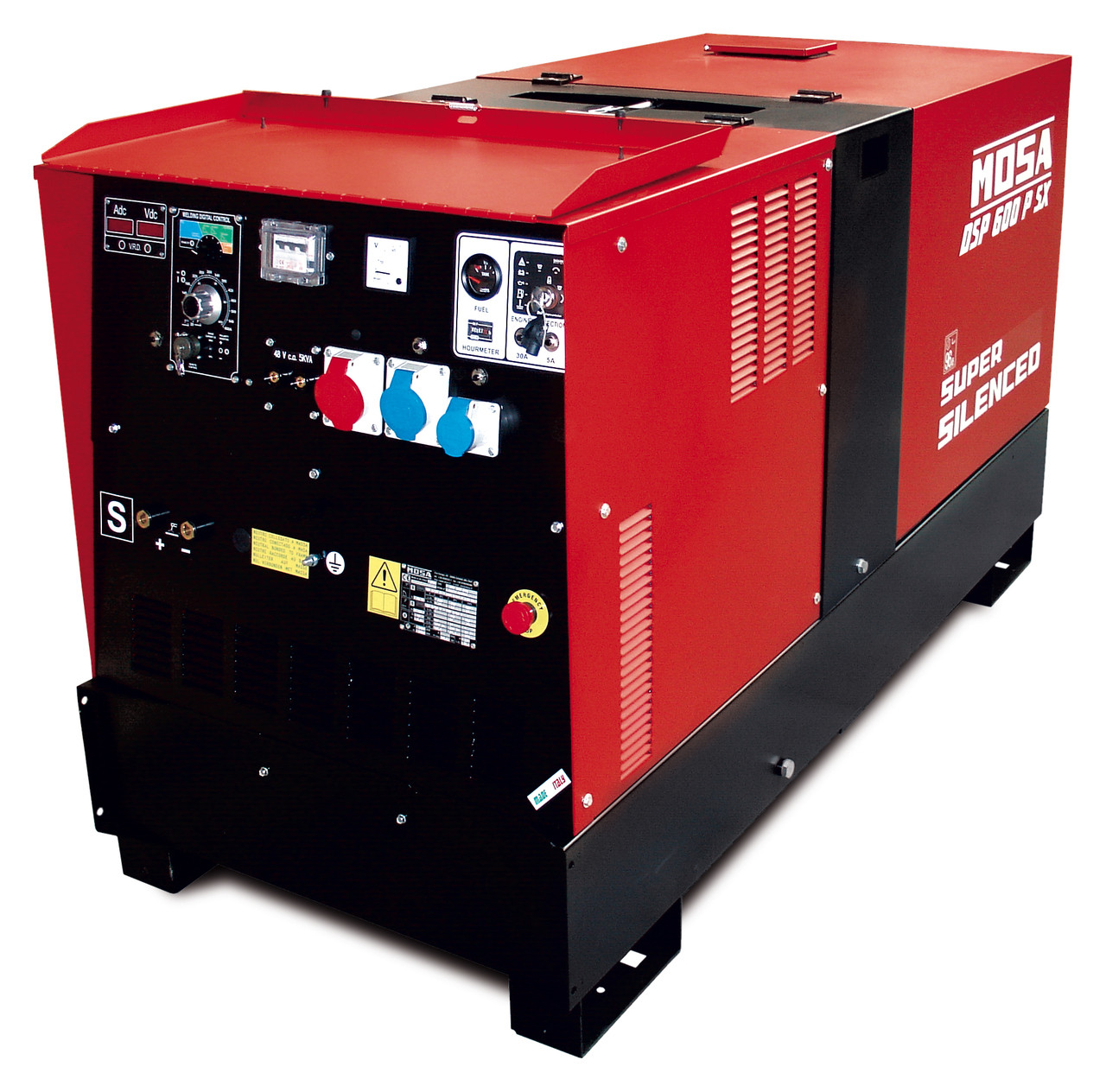

DSP 600 PS-CC/CV - Diesel
Product Description
DSP 600 PS-CC/CV - Diesel
Key Features
• Arc multi-process welder:
- SMAW: Shielded Metal Arc Welding (Stick)
- GTAW: Gas Tungsten Arc Welding (TIG) - Contact starting
- GMAW: Gas Metal Arc Welding (MIG)
- FCAW: Flux Cored Arc Welding (Flux Cored)
• High frequency digital control of welding current and voltage
• Specific welding programs for cellulose electrodes
• Double welding range (HALF/FULL - 50%/100%)
• Digital Ammeter/Voltmeter welding
• A.C. generator, single-phase and three-phase
• Aux power also available while welding
• Meets EC directives for noise and safety
Available in the UK
C.C. Welding (Constant Current) SMAW (Stick)/GTAW (TIG)
|
Current range |
10 - 600A |
|
|
|
Duty cycle |
600A - 35% |
550A - 60% |
500A - 100% |
|
Open circuit voltage |
60V |
|
|
C.C. Welding (Constant Current) GMAW (MIG)/FCAW (Flux Cored)
CV (Constant Voltage)
|
Current range |
16 - 40V |
|
|
Duty cycle |
550A - 60% |
550A - 100% |
A.C. Generation - 50Hz - Three-Phase Asynchronous Alternator
Self-Regulated, Self-Exciting,, Brushless
|
Three-phase power |
30 kVA (24 kW) / 400V / 43.3A |
|
Single-phase power |
15 kVA (12 kW) / 230V / 65.2A |
|
Single-phase power |
8 kVA (6.4 kW) / 110V / 72.7A |
|
Insulation class |
H |
Engine - Diesel 4-Stroke, Direct Injection, Air Cooled
|
Model |
Perkins 1103A - 33G1 |
|
Output* |
30.4 kW (41.3 HP) |
|
Cylinders / Displacement |
3 / 3300cm3 |
|
Speed |
1500 rpm |
|
Fuel consumption (welding 60%) |
5 l/h |
|
* Maximum output (not overloadable) according to ISO 3046-1 |
|
General Specifications
|
Tank capacity |
65 litres |
|
Running time (welding 60%) |
13 hours |
|
IP protection degree |
IP 23 |
|
Dimensions LxWxH (mm)* |
2030 x 870 x 1130 |
|
Dry weight* |
1000 Kg |
|
Measured acoustic power LwA (pressure LpA)** |
94 dB(A) (69 dB(A) @ 7m) |
|
Guaranteed acoustic power LwA (pressure LpA) |
95 dB(A) (70 dB(A) @ 7m) |
|
* Values shown do not include trolleys |
|
|
** Acoustic power according to European Directive 2000/14/EC |
|
Optional
Site tow CTL300
Available in the UK
Road trailer
